MySQL

The MySQL producer is a persistence code generator: it translates a CodeFluent Entities model into a database running on MySQL Server 5.1 and upper. The database is created by generating SQL scripts which are then automatically ran on the configured server.

Prerequisites

The MySQL Producer relies on the MySQL Connector for .NET, version 6.5.4.0. CodeFluent Entities requires the MySql.Data assembly.

Generate the MySQL persistence layer

The MySQL Producer is implemented by the CodeFluent.Producers.MySQLProducer class, contained in the CodeFluent.Producers.MySQL assembly.

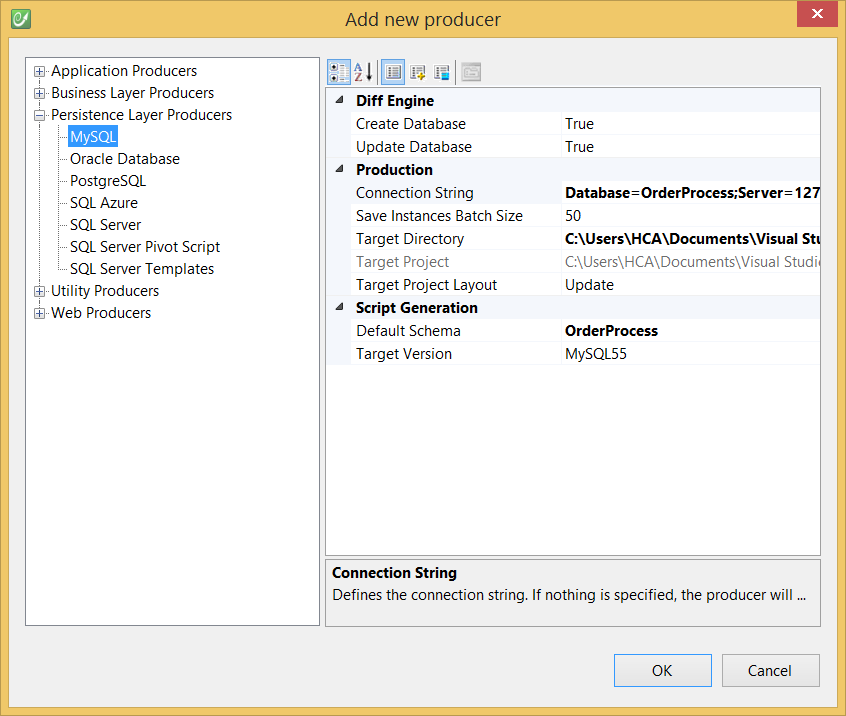

The MySQL Producer is available in the Persistence Layer Producers section of the Add New Producer window.

  • Target Directory: specifies where to generate the scripts, connectionString: defines the connection string to use to connect to the database and run the scripts ("{0}" is an alias to the default namespace),
  • Produce Schemas: indicates whether tables should be generated in schemas defined in the model using the "Schema Name" property, or ignoring them (all tables are generated in the default schema).
  • Target Version: the version targeted by the producer.

Application configuration

You need to configure the generated classes to use MySQL as persistence layer (persistenceTypeName) and set a connection string indicating them where to connect to (connectionString). Here's a sample configuration for a sample Northwind application:

<configSections>
  <section name="Northwind" type="CodeFluent.Runtime.CodeFluentConfigurationSectionHandler, CodeFluent.Runtime" />
</configSections>
<Northwind persistenceTypeName="MySQL"
           connectionString="Server=localhost;Database=Northwind;User Id=root;Password=yourpassword;"
           mysql-useSchemas="true" /><configSections>
  <section name="Northwind" type="CodeFluent.Runtime.CodeFluentConfigurationSectionHandler, CodeFluent.Runtime" />
</configSections>
<Northwind persistenceTypeName="MySQL"
           connectionString="Server=localhost;Database=Northwind;User Id=root;Password=yourpassword;"
           mysql-useSchemas="true" />

Note: mysql-useSchemas is optional and its default value is true. Its value at runtime must match the Produce Schemas property value which was used to generate the database.

Supported features

The following features are supported:

  • Schemas (i.e. MySQL databases) and cross-schemas relations,
  • Tables,
  • Constraints (primary keys and foreign keys),
  • Sequences for auto-incremented columns
  • Views,
  • Stored procedures,
  • Generating and saving instances,
  • Saving Binary Large Objects (BLOB) instances in BLOB columns

Unsupported features

  • Differential engine
  • CFQL Search methods

Special cases

Binary Large Objects (BLOB) management

Any binary large object defined in the model is stored in MySQL in fields of type BLOB.

Differential engine

The producer does not provide a differential engine as the Microsoft SQL Server Producer does for instance. Therefore, the database is completely rebuilt at each generation.

Target versions

Starting from MySQL 5.1, all upper versions are supported. Please note MySQL 5.5 is the default target version.

Notes: MySQL 5.1 cannot raise custom exceptions. As a consequence, if the Target Version property equals MySQL51, the generated script will not raise exceptions (such as concurrency exceptions for instance).
